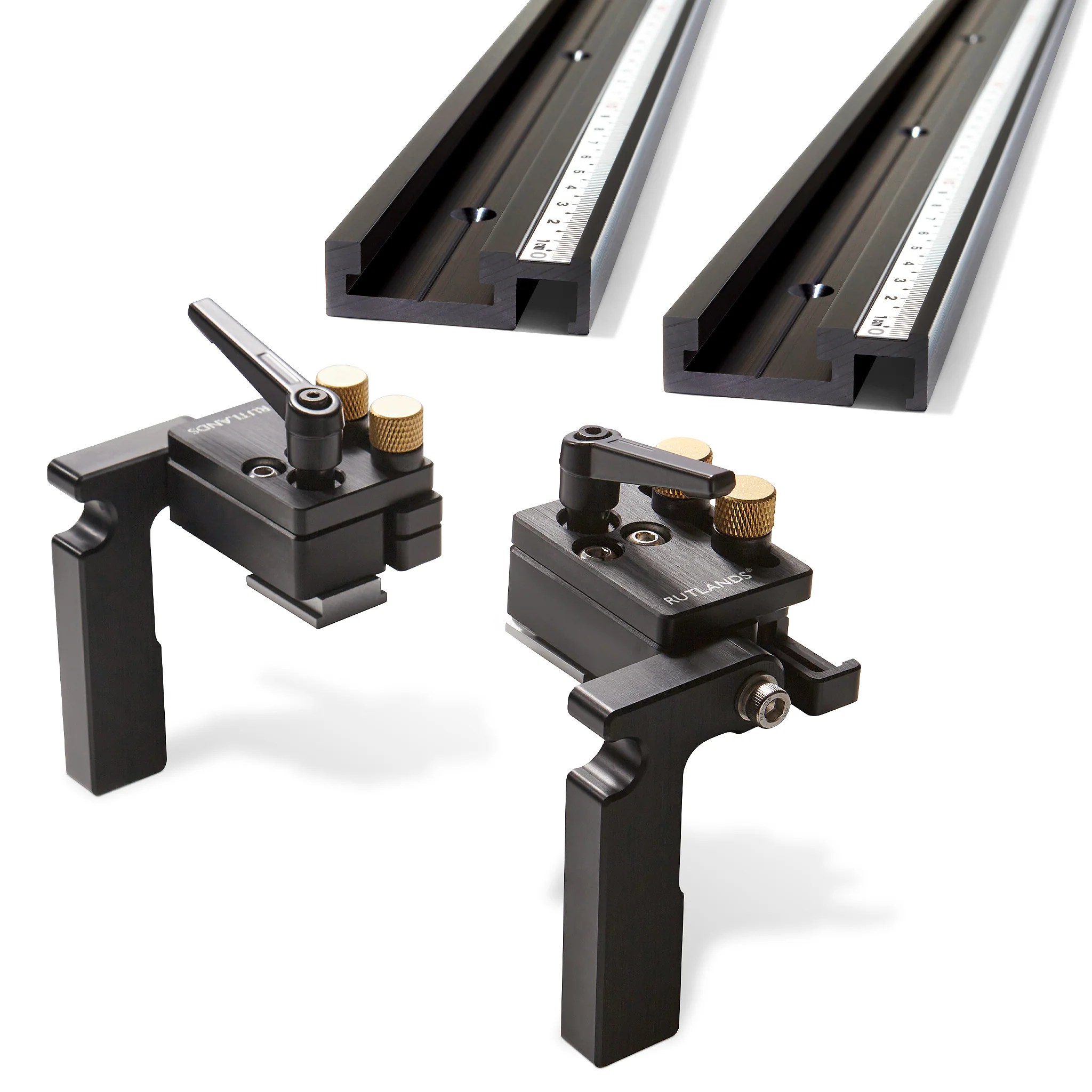

This kit contains 2 pieces of 19mm x 1,000mm scale T track and a set of left and right flip stops which is all you need to construct your own fence for a router table or table saw.

This T track is intended for use on home made router tables and benches and combines a T slot track with a recess for fitting the supplied self adhesive, metric measuring tape, allowing you to quickly measure distances on your fence or table without the need for a tape measure. This track measures 1000mm in length and has a 19mm wide x 9.5mm deep slot opening for use with industry standard mitre gauge bars and a lower 24mm wide T slot for use with industry standard slider T bars. The external dimensions are 42.9mm wide by 13.1mm deep. Supplied as a pack of 2 x 1000mm lengths, this track accepts the optional 19mm slider bar kits, 60 piece hardware kit, low profile stops, hold down, cam clamps and fast jaw clamps.

Manufactured from aluminium extrusions, T tracks are the core component for making woodworking jigs and fixtures. T tracks are commonly used on work benches, router tables, saw tables and drilling machine tables when working with fences, mitre gauges, feather boards, coping sleds and hold down clamps. They can be fitted to any surface in to which an appropriate channel can be cut or routed. Designed and manufactured exclusively for Rutlands®, using our own precision steel dies, each track is anodised for wear resistance and to prevent oxidation. The T track is predrilled with countersunk holes at 130mm intervals and features a central V groove running the complete length of the track for ease of drilling additional location holes.

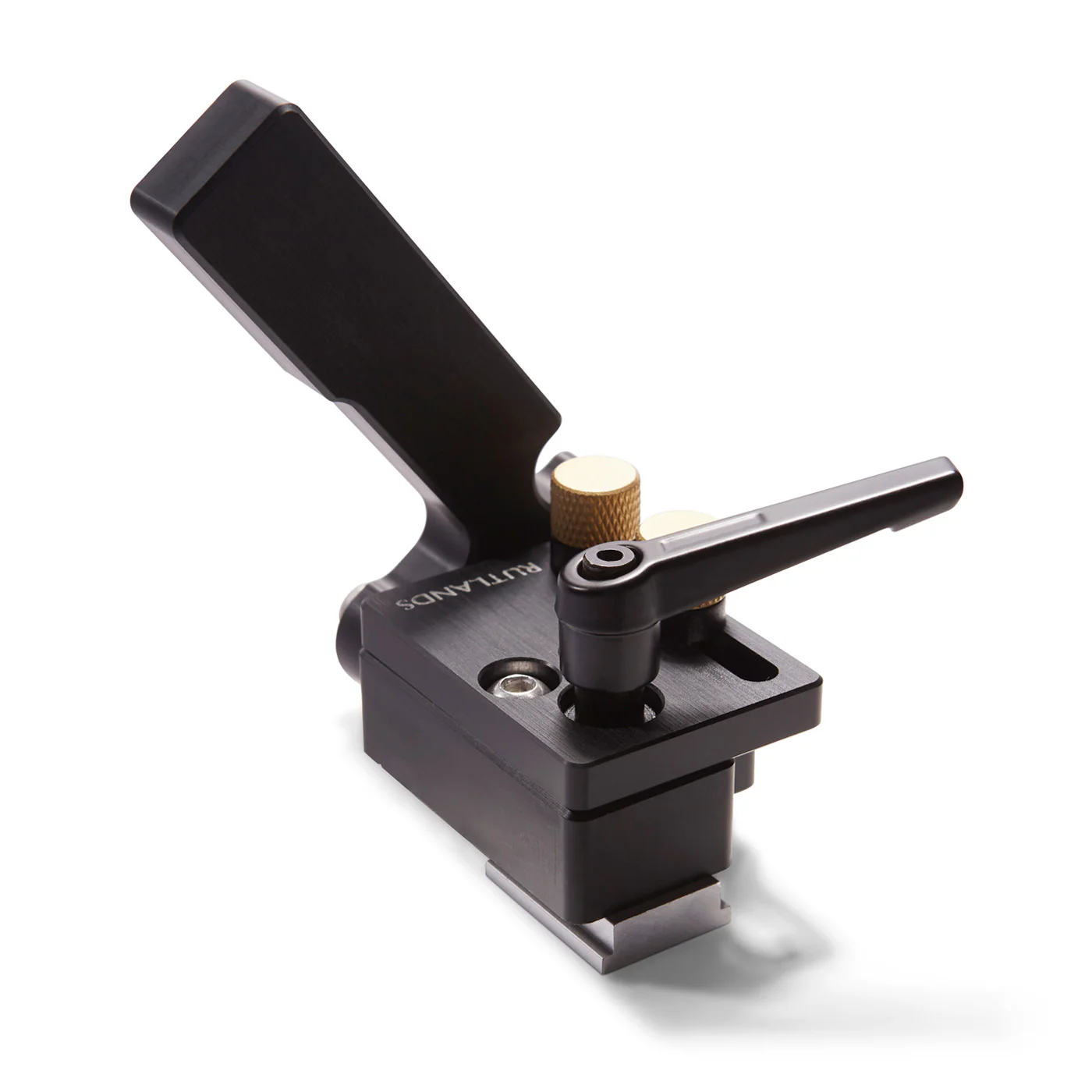

The flip stops are manufactured from CNC machined aircraft-grade aluminium, beautifully finished in black electro-coating and designed for extremely precise and repetitive workshop measuring. The flip stops are for use with industry standard 19mm T Tracks and are frequently used with T tracks that combine measuring scales when making homemade mitre, router and table saw extensions.

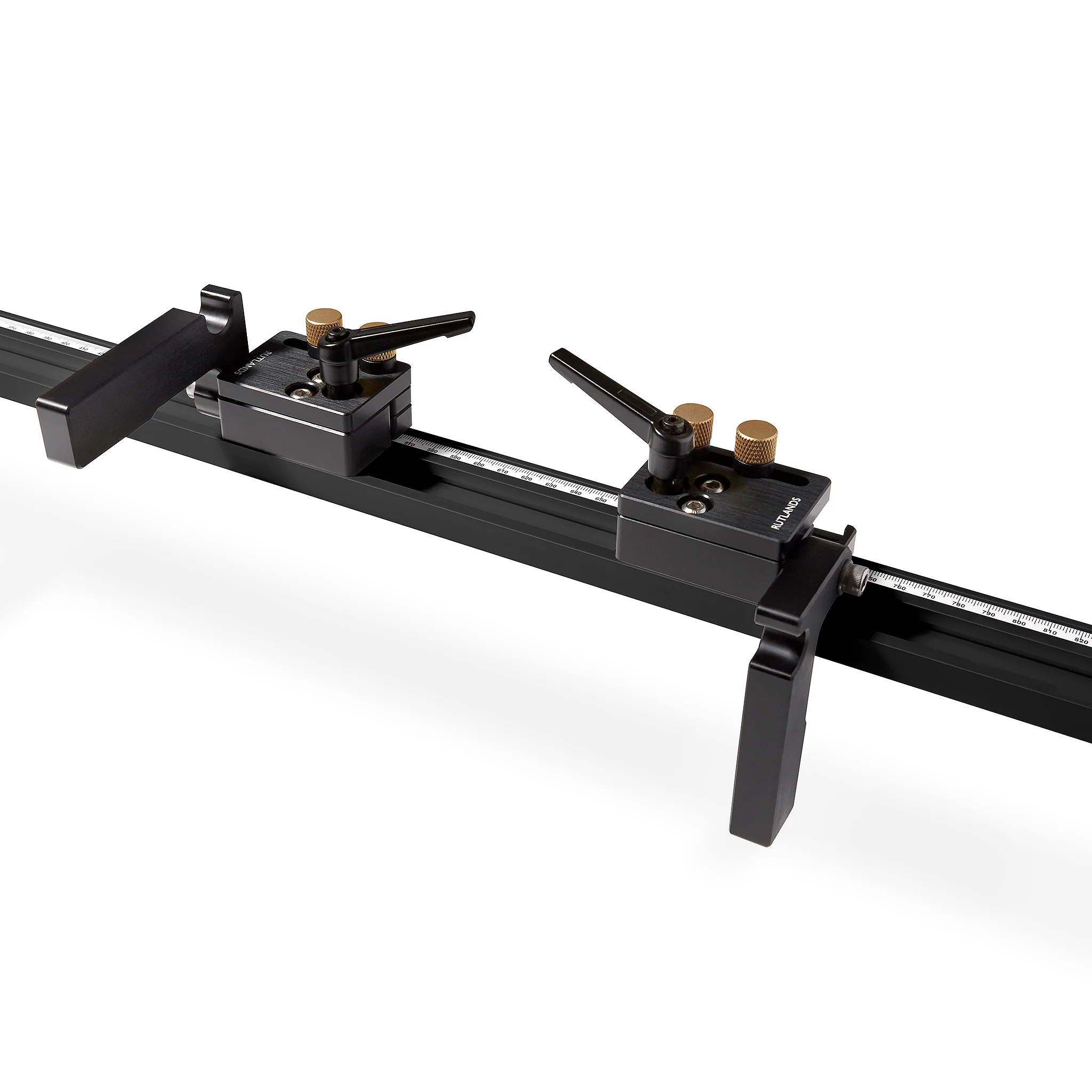

Simply slide the flip stop onto the T track and use the Bristol locking handle to secure the stop in position. The Bristol locking lever can be rotated to ensure it does not obstruct the workpiece. The stop arm measures 85mm length by 7mm in width and 15mm deep. You can micro adjust the arm using an Allen key to increase or decrease the play in the swing. The pointed cursor has 20mm of travel to allow for exact positioning and perfect visibility.

These flip stops are supplied as a set of two and designed for accurate, repetitive measuring. ©

* Please note: T track may be supplied in silver or black.
